fix(setup): recover from an empty profile catalog

[drewstone]

User outcome

When setup finds no profiles, a user can recover without restarting Braid:

• Retry discovery rereads the existing CLI Bridge catalog and workspace profile files.
• Setup instructions explains the local/profile/cloud paths.
• Show diagnostics retains the full discovery details without filling the first screen.
• Escape returns from details, then leaves setup. A cancelled retry cannot reopen it.

The first retry stays selected and keyboard reachable at 40×12 through 200×60. Repeated Enter presses share one in-flight discovery. Exceptions use the maintained error redaction and duplicate diagnostics are removed.

Before and after

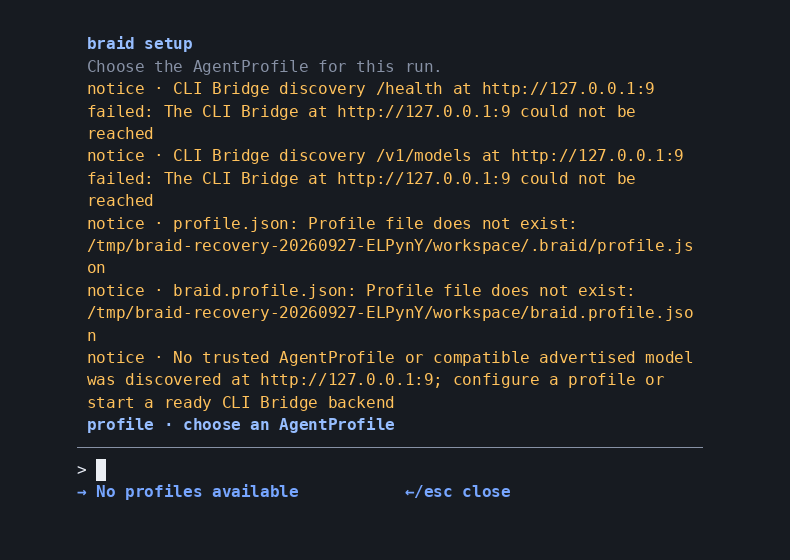

Before (public 0.3.2)	After (this source)

All four sizes and receipts · Recovery recording · Cancel recording

Checks and review

• Actual PTY capture: add a profile after startup, retry, select it, reach the connection chooser without restart.
• Delayed-discovery capture: three Enter presses caused exactly two HTTP reads (one batch); Escape closed setup; delayed replies caused no late redraw.
• Captures used isolated state and no production credentials. No model calls or Apply were performed. The delayed service exercises UI timing, not provider execution.
• Source compiled; changed files passed Biome lint, boundary checks, git diff --check, and commit/push hooks.
• Updated the existing empty-catalog assertion for instructions → back → cancel. The new component is registered in the existing design inventory; the unchanged test/component-docs.test.ts passes both assertions. Existing repository CI runs the full configured checks.
• Independent source review covered retry races, cancellation, source routing and saved configuration. Independent visual review caught and fixed a truncated profile path.

Delivery

The Braid owner agreed to this source surface in the comment on #100. The onboarding documentation in #100 is merged at 0e1b78bfca7fb685532a1496090a972b49ae7be4, and this branch includes that main revision. Provider authentication, model validation, transport, and persistence remain on the existing setup path. No profile/model is created automatically, and no package is published by this PR.

Rollback: revert the source change. No data migration is involved.

[tangletools]

✅ Auto-approved PR — 75bdcb8b

Blanket team auto-approval is intentional. The merge gates are CI and codex-p1.
No automated review runs on this PR. This approval rests on the rule above alone.

_{tangletools · auto-approval · reason: blanket_auto_approve · 2026-09-27T04:42:45Z}

[tangletools]

✅ Auto-approved PR — e150dcef

Blanket team auto-approval is intentional. The merge gates are CI and codex-p1.
No automated review runs on this PR. This approval rests on the rule above alone.

_{tangletools · auto-approval · reason: blanket_auto_approve · 2026-09-27T04:50:24Z}

[drewstone]

Owner readback at 05:05Z: exact head b385820 verify run36295519659 failed at05:01:33Z. The one failed case is component-docs: exported ConfigurationRecovery in src/views/tui/configuration-recovery.ts has no component design-document mapping. Other three CI jobs passed; exact-head approval is attached.

portfolio_status owns this narrow correction and rerun; root is preserving that ownership. Raw log retained at /tmp/braid-pr102-verify-failure-20260927.log. Speed field36294950745 is independently green on frozen b5cb/public032476307 and overlap is OFF; no source serialization hold remains.

[tangletools]

✅ Auto-approved PR — 6ab44ae7

Blanket team auto-approval is intentional. The merge gates are CI and codex-p1.
No automated review runs on this PR. This approval rests on the rule above alone.

_{tangletools · auto-approval · reason: blanket_auto_approve · 2026-09-27T05:05:38Z}
