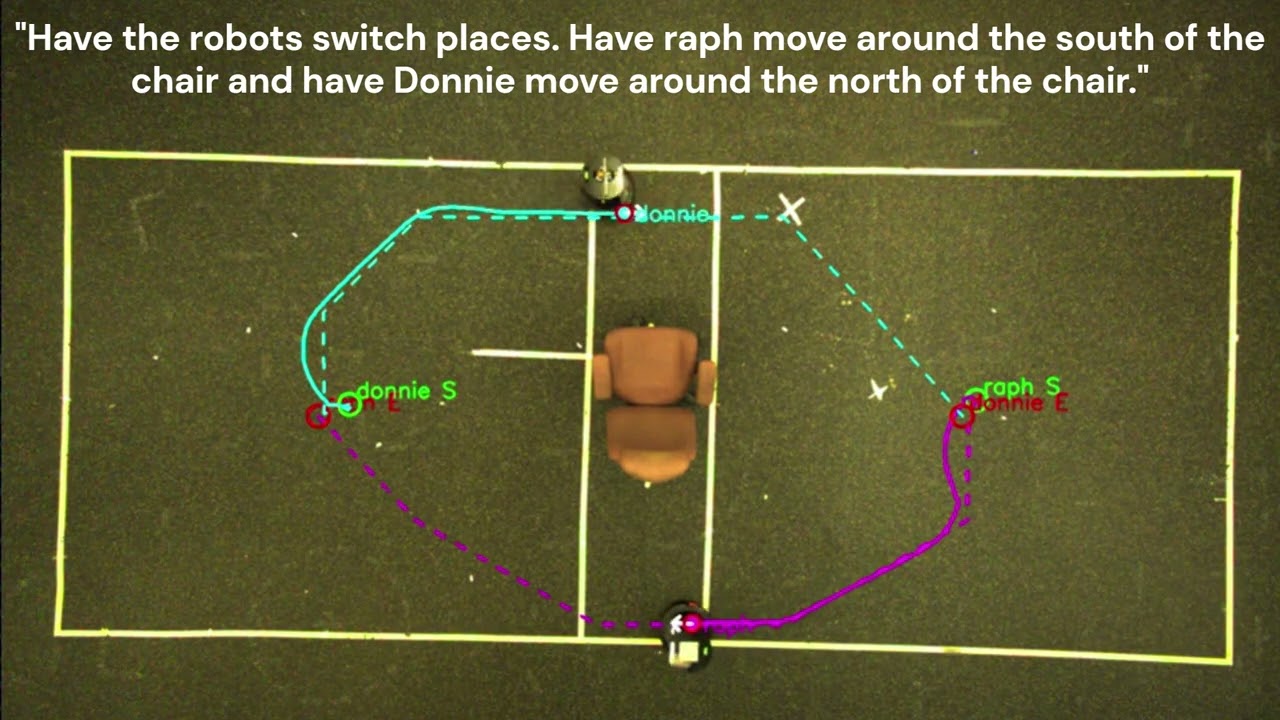

Lab Deployment

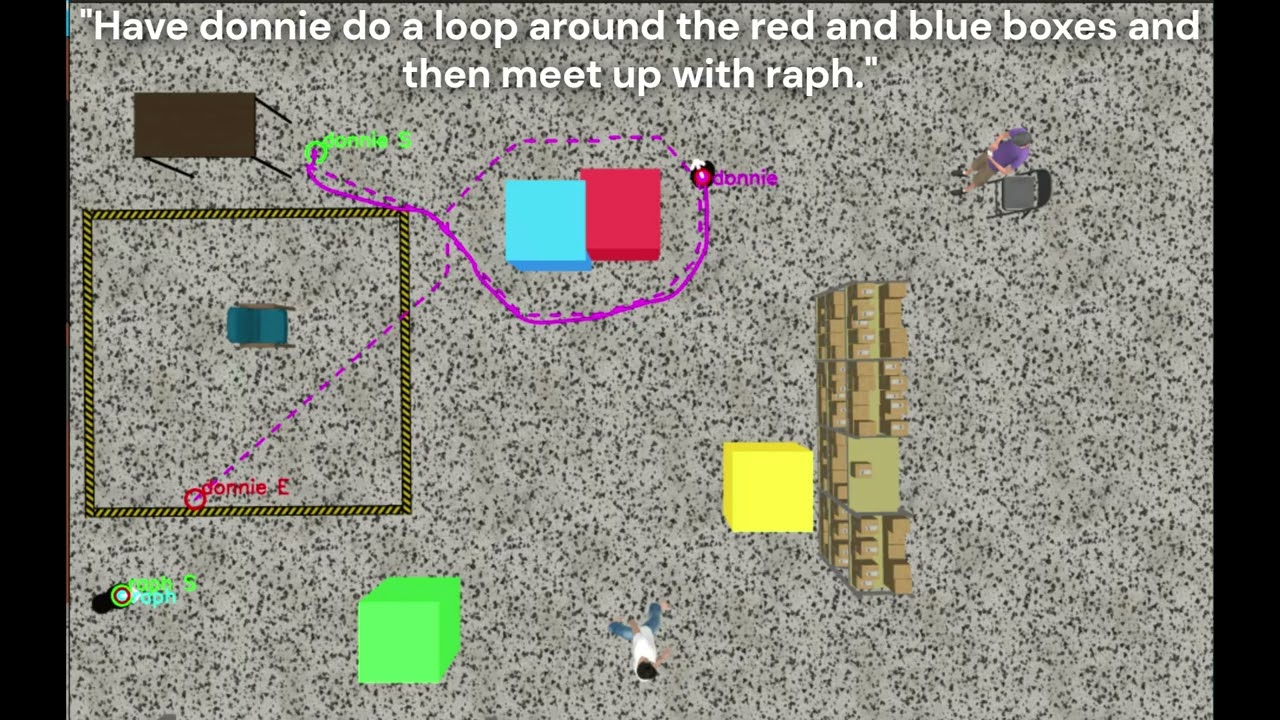

Simulation

ROS 2 workspace that turns a natural‑language instruction into coordinated motion for two TurtleBot 4s — in Ignition Gazebo Fortress or in the REEF Autonomous Vehicle Laboratory.

Introduction

CoPlanVLM plans missions for two robots — raph and donnie — from a single operator sentence. One instruction covers both; the planner decides what each robot does.

A prompt runs through two LLM calls:

Classifier (text) tags the instruction as one of three task types — nav2point, maneuver, or coverage.
Planner (vision) sees an overhead camera frame marked with a grid of candidate points and returns a route per robot. Chain‑of‑thought is used to produce a reasoning field first, so the model reasons before it commits to a route.

The task type determines the low‑level planner that turns those cell picks into an obstacle‑free route: A* for nav2point and maneuver tasks, or a TSP‑ordered sweep for coverage.

Everything was developed on Python 3.10+ on ROS 2 Humble. The same code runs in sim and on hardware — only the camera calibration and the pose source differ.

Features

One instruction, two robots – the planner assigns work to raph and donnie together.
Three task types – nav2point (go there), maneuver (go there a particular way), coverage (sweep a region), each with its own prompt and low‑level planner.
Vision grounding – CLIPSeg segments traversable floor into an occupancy grid; the VLM picks cells off a set‑of‑marks overlay built from that same grid.
Sim ↔ hardware parity – identical nodes and topics; a camera parameter selects the calibration. Poses always arrive as NED PoseStamped on /<robot>/ned/pose_stamped — from MoCap in the lab, or from node_Odometry_To_Pose converting Gazebo odometry in sim to NED pose.
Debugging Figures – every run writes the exact prompt, the exact image the model saw, and the resulting routes to a per‑environment debug/ directory.

Project Architecture

operator sentence
        │  /nav/prompt  (std_msgs/String)
        ▼
┌───────────────────────────────────────┐
│ node_Executive_API                    │
│  1. classifier LLM  → task type       │   overhead camera
│  2. CLIPSeg         → occupancy grid  │◄──────────────────
│  3. planner VLM     → cells per robot │
└───────────────┬───────────────────────┘
                │  /vlm_plan
                │  {"planner": "astar"|"coverage",
                │   "routes": {"raph": [...], "donnie": [...]}}
                ▼
┌───────────────────────────────────────┐
│ node_Path_Translator                  │
│  cells → world metres, then A* or     │
│  coverage‑TSP around obstacles        │
└───────┬───────────────────────┬───────┘
        │ /raph/waypoint_path   │ /donnie/waypoint_path
        ▼                       ▼
┌───────────────┐       ┌───────────────┐
│ node_Control  │◄─────►│ node_Control  │  each sees the other's pose
│    (raph)     │ poses │   (donnie)    │
│  P controller │       │  P controller │
│  + CBF filter │       │  + CBF filter │
└───────┬───────┘       └───────┬───────┘
        │ /raph/cmd_vel         │ /donnie/cmd_vel
        ▼                       ▼
     TurtleBot 4             TurtleBot 4

Each node_Control runs a CBF‑QP safety filter on its own output, using the other robot's pose and the shared occupancy grid — so collisions are avoided even when the plan itself is stale.

node_Path_Visualizer subscribes alongside this chain and draws both robots' plans and live poses on the overhead frame.

The Executive shares its occupancy grid and the camera frame it was computed from with the Translator through debug/coplan_vlm_occupancy.npz, so CLIPSeg runs once per plan and every debug figure shows the same instant the VLM saw.

Node Reference

Executable	Module	Role
`node_Executive_API`	`node_Executive_API.exec`	Classifier + planner LLM calls, CLIPSeg, publishes `/vlm_plan`
`node_Path_Translator`	`node_Path_Translator.translator_node`	Cell labels → metric waypoints via A* / coverage controllers
`node_Control`	`node_Control.control`	Path follower + CBF‑QP safety filter → `/cmd_vel`. One instance per robot
`node_Path_Visualizer`	`node_Path_Visualizer.path_visualizer`	Live overlay of plans + poses
`node_Odometry_To_Pose`	`node_Odometry_To_Pose.odom_to_pose`	Sim only. Gazebo odom → NED pose. One per robot
`obs_seg_cli`	`obs_seg.cli`	Standalone segmentation / occupancy CLI

How two robots work: node_Control and node_Odometry_To_Pose are each launched twice, remapped into /raph/… and /donnie/…. The Executive, Translator and Visualizer are single instances that handle both robots via their robot_names parameter.

Topics & Interfaces

Topic	Type	Publisher → Subscriber
`/nav/prompt`	`std_msgs/String`	operator → Executive
`/vlm_plan`	`std_msgs/String` (JSON)	Executive → Translator, Visualizer
`/<robot>/waypoint_path`	`std_msgs/Float32MultiArray` `[x1,y1,x2,y2,…]`	Translator → Control
`/<robot>/cmd_vel`	`geometry_msgs/Twist`	Control → base
`/<robot>/ned/pose_stamped`	`geometry_msgs/PoseStamped`	Odom shim (sim) / MoCap (lab) → everyone
overhead image	`sensor_msgs/Image`	`/ids_overhead/image` (sim) · `/ueye/test/image_raw` (lab)
overhead info	`sensor_msgs/CameraInfo`	`/ids_overhead/camera_info` (sim) · `/ueye/test/camera_info` (lab)

/vlm_plan example:

{"planner": "astar", "routes": {"raph": ["G7", "H8"], "donnie": ["C3"]}}

planner is astar for nav2point/maneuver and coverage for coverage.

Prerequisites

OS / runtime – Ubuntu 22.04, ROS 2 Humble, Python 3.10+.
Simulation – Ignition Gazebo Fortress plus the TurtleBot 4 sim packages. Follow the TurtleBot 4 simulator install guide.
Python – see requirements.txt. Includes torch / transformers for CLIPSeg, which uses CUDA when available and falls back to CPU automatically.
OpenAI API key – see Configuration.

Workspace Setup

# 1. create a ROS 2 overlay workspace (if you don't have one)
mkdir -p ~/turtle4_ws/src && cd ~/turtle4_ws

# 2. clone the repo
git clone https://github.com/AICPS/CoPlanVLM.git src/CoPlanVLM

# 3. install Python deps
python3 -m pip install -r src/CoPlanVLM/requirements.txt

# 4. add your OpenAI key (see Configuration) — do this BEFORE building
cp src/CoPlanVLM/config/.env.example src/CoPlanVLM/config/.env
$EDITOR src/CoPlanVLM/config/.env

# 5. resolve ROS 2 deps & build — FROM THE WORKSPACE ROOT
rosdep update
rosdep install --from-paths src --ignore-src -y
colcon build --symlink-install
source install/setup.bash

Tip: add source ~/turtle4_ws/install/setup.bash to your ~/.bashrc.

Configuration

OpenAI credentials

Both launch files load config/.env and read MY_API_KEY. Copy the template and insert your own key:

cp src/CoPlanVLM/config/.env.example src/CoPlanVLM/config/.env
$EDITOR src/CoPlanVLM/config/.env        # set MY_API_KEY=sk-...

config/.env is gitignored — keep your key out of version control. Launch fails immediately with MY_API_KEY not found in .env file if it is missing.

Create the file before colcon build, or re-run the build afterwards: the launch files read the copy under install/, which the build places there.

Camera calibration

Every node that converts pixels ↔ metres takes a camera parameter — gazebo or lab_test — selecting an entry in coord_transform.CAMERAS (focal lengths, principal point, mounting height). The launch files set it; you should not need to.

Running in Simulation

Three terminals from the workspace root.

1. Start the simulator and both robots

./src/CoPlanVLM/scripts/launch_all.sh

This brings up the Ignition world with raph, waits IGNITION_DELAY seconds (default 15) for the world to settle, then runs spawn_second_robot.sh to add donnie and its controllers. Both robots come from this one script.

Wait until both robots are spawned and visible in the sim. Ctrl‑C tears everything down and sweeps orphaned sim processes.

2. Start the planning stack

ros2 launch coplan_vlm coplan_vlm_4sim.launch.py

Starts the Executive, Translator, Visualizer, and one Control + Odometry‑to‑Pose pair per robot.

3. Send a mission

./src/CoPlanVLM/scripts/send_prompt.sh "Surround the person in the purple shirt by sending robots to the left and right sides of the person"
./src/CoPlanVLM/scripts/send_prompt.sh "Patrol the perimeter of the map"

Watch it work in the node_Path_Visualizer window.

Running in the Lab

Same stack, minus the simulator. The lab replaces two things: MoCap publishes robot poses directly, and the ueye overhead camera replaces the sim camera. Because MoCap already publishes NED PoseStamped, the deploy launch omits both node_Odometry_To_Pose converters — they exist only to translate Gazebo odometry to the NED frame.

1. Bring up the Mocap room

ros2 launch ros_vrpn_client test.launch name:=donnie

ros2 launch ros_vrpn_client test.launch name:=raph

2. Launch the ueye client:

ros2 launch ueye_cam standalone.launch.py

Lab-only dependencies. ros_vrpn_client and ueye_cam are site-specific packages for the REEF MoCap rig and the ueye overhead camera. They are not public ROS 2 packages and are deliberately not declared in package.xml, so this section is not reproducible outside the lab. Everything in Running in Simulation and Testing & Debugging runs anywhere.

Before launching, these four topics must be publishing:

Topic	Source
`/raph/ned/pose_stamped`	MoCap
`/donnie/ned/pose_stamped`	MoCap
`/ueye/test/image_raw`	ueye overhead camera
`/ueye/test/camera_info`	ueye overhead camera

Verify each is live and has a publisher.

3. Start the planning stack

ros2 launch coplan_vlm coplan_vlm_deploy.launch.py

Starts the Executive, Translator, Visualizer, and one Control node per robot — all with camera:=lab_test.

4. Send a mission

Identical to sim:

./src/CoPlanVLM/scripts/send_prompt.sh "Send raph to the door and donnie to the window"

Testing & Debugging

The bundled `test_data/` fixture

The offline harnesses need no simulator, no robots and no capture step — the fixture ships with the repo at test_data/:

File	Scene
`overhead.png` + `poses.json`	the Gazebo warehouse frame used by every `--mode sim` run
`AVL_1.png`, `AVL_2.png`, `AVL_3.png`	the three lab scenes used by `--mode real` / `test_pipeline_real.py`

Every harness resolves this directory from its own location, so the commands below work from any working directory. Pass --data <dir> to point at a different capture.

To regenerate the sim fixture against a different scene, run this once with the simulator up:

python3 src/CoPlanVLM/scripts/save_overhead.py \
  --out src/CoPlanVLM/test_data --robots raph donnie

The lab scenes' robot identities are inferred, not measured: test_pipeline_real.py assumes the easternmost robot is raph. If a run's markers look swapped, swap the two pose tuples in SCENES at the top of that file.

Offline harnesses

These run the full planning pipeline on a saved image. Each run spends OpenAI API credits.

Script	Purpose
`scripts/test_pipeline.py`	The reference pipeline on the sim overhead image
`scripts/test_pipeline_real.py`	Same, on a lab image with `lab_test` calibration

# sim scene — test_data/overhead.png (gazebo calibration)
python3 src/CoPlanVLM/scripts/test_pipeline.py \
  --prompt "Surround the person in the purple shirt by sending robots to the left and right sides of the person"

# lab scene — test_data/AVL_2.png (lab_test calibration)
python3 src/CoPlanVLM/scripts/test_pipeline_real.py --scene AVL_2 \
  --prompt "Move one robot to the north of the boxes and one to the south of the boxes."

test_pipeline_real.py takes --scene AVL_1, AVL_2 or AVL_3; it defaults to AVL_3. Each scene carries its own hardcoded robot poses, so the scene and the prompt have to match — the boxes above exist in AVL_2. See Test Prompts and Success Criteria for a prompt that has been validated against each scene.

Ablations

Three configurations isolate the contribution of each component. Only the obstacle-marking arm needs its own script; the other two are flags on the reference harness.

Configuration	Command
CoPlanVLM (full)	`test_pipeline.py --prompt "…"`
CoPlanVLM w/o Marked Obs.	`ablation_test_no_obs_markers.py --mode sim --prompt "…"`
CoPlanVLM Maneuver Only	`test_pipeline.py --planner maneuver --out debug/ablation_maneuver_only_sim --prompt "…"`
CoPlanVLM w/o CoT	`test_pipeline.py --no-cot --out debug/ablation_no_cot_sim --prompt "…"`

Each arm takes --mode real (for the wrapper) or test_pipeline_real.py --scene AVL_1|AVL_2|AVL_3 to run the same configuration on the lab scenes.

How each one works:

w/o Marked Obs. needs a dedicated script because the red-X cue reaches the model through four channels: the rendered image, the overlay description, the impassable-label listing, and the per-step descriptions in the reply JSON schema. The wrapper swaps in generate_prompt_nomark and route_schema_nomark, which strip all four. --map-overlay points removes only the first three and leaves the red-marker wording in the schema — it is a half-ablation and not the ablation arm.
Maneuver Only sets the controller directly, so the classifier call is skipped entirely rather than overridden.
w/o CoT drops both the chain-of-thought scaffold from the prompt and the per-step reasoning fields from the reply schema, so the model's first generated tokens are the waypoints.

Pass --out for the last two. The no-markers wrapper forces its own output directory, but --planner maneuver and --no-cot default to debug/offline_test_sim — the same directory as the full pipeline — and will otherwise overwrite the baseline's artifacts.

Ablations are offline-only. The live node_Executive_API hardcodes the production overlay and chain-of-thought, and exposes no parameter for either, so these configurations cannot be run through the launch files.

Baselines

Three alternative marking schemes, each a single VLM call with no classifier and no chain-of-thought:

Baseline	Command
Grid Overlay	`test_grid_overlay.py --mode sim --prompt "…"`
Pixel Selection	`test_pixel_selection.py --mode sim --prompt "…"`
CoNVOI Marking	`test_convoi_prompting.py --mode sim --prompt "…"`

scripts/plot_success_rates.py regenerates the comparison figure. Its SUCCESS_RATES table is entered by hand — there is no automated path from harness output into the chart.

Debug artifacts

Every run writes its prompt, the exact image the VLM saw, the occupancy overlay and the planned routes to debug/ at the workspace root — run the offline harnesses from there so their output lands alongside the live runs'.

Each run writes to its own directory under debug/, so runs never overwrite each other:

Directory	Written by
`debug/gazebo_sim`	live sim run
`debug/deploy_real`	live lab run
`debug/offline_test_sim` / `debug/offline_test_real`	`test_pipeline.py` / `test_pipeline_real.py`
`debug/ablation_no_obs_markers_{sim,real}`	`ablation_test_no_obs_markers.py`
`debug/grid_overlay_{sim,real}`	`test_grid_overlay.py`
`debug/pixel_selection_{sim,real}`	`test_pixel_selection.py`
`debug/convoi_{sim,real}`	`test_convoi_prompting.py`

Each contains:

File	Contents
`marks_overlay.png`	byte‑exact copy of the image sent to the VLM
`vlm_prompt.txt` / `vlm_response.txt`	the exact exchange
`raw_overhead.png`	the undistorted camera frame the plan was built from
`inflation_overlay.png`	occupancy: red = obstacle, yellow = inflation margin
`robot_paths_waypoints.png`	both robots' final routes on one image
`<robot>/`	per‑robot `vlm_selections.png`, `route_centroids.png`, `route_planned.png`

Every figure in a directory shows the same camera frame, so they can be compared directly.

Test Prompts and Success Criteria

Prompt	Classification	Environment	Prompt	Success Criteria
1	nav2point	Sim	"Surround the person in the purple shirt by sending robots to the left and right sides of the person"	Both robots end within one grid point of the person in purple, with one robot on the left of the person and one robot on the right of the person.
2	nav2point	Sim	"Have each robot hide on left side of the nearest obstacle"	Robots are positioned directly left of the nearest obstacle, within 1 grid point of the obstacle.
3	nav2point	Sim	"Visit each of the four colored boxes"	For each box, a robot passes within one grid point of the box.
4	nav2point	AVL 1	"Send both robots to the white X marked in tape"	Both robots end within 1 grid point of the white tape X.
5	nav2point	AVL 2	"Move one robot to the north of the boxes and one to the south of the boxes."	One robot ends within 1 grid point of the north side of the rack of boxes; the other ends within 1 grid point of the south side.
6	nav2point	AVL 3	"Visit each object in the scene."	At least one robot passes within 1 grid point of each of the 3 objects (2 boxes, 1 chair).
7	Coverage	Sim	"Patrol the perimeter of the map"	Every point of the edge of the map that is not blocked by an obstacle is visited by at least one robot. Success is 95% of points visited, meaning 2 points total can be missed.
8	Coverage	Sim	"Patrol around the rack of boxes"	At least one robot passes within one grid point of each grid point on the perimeter of the rack.
9	Coverage	Sim	"Survey the area inside the black and yellow striped tape."	All open points within the square marked by the tape are visited by a robot. (At least 95% coverage means no points can be missed.)
10	Coverage	AVL 1	"Have the robots patrol the area around the chair."	At least one robot passes within 1 grid point of all 4 sides (North, South, East, West) of the chair. Success = all 4 sides visited.
11	Coverage	AVL 2	"Have the robots survey the large square marked in tape on the left side."	At least one robot visits every free grid point inside the taped square. Success = 95% of free points visited (max 1 point missed).
12	Coverage	AVL 3	"Patrol the left half of the map."	At least one robot visits every free grid point in the left half of the map. Success = ≥95% of free points visited (max 1 point missed).
13	maneuver	Sim	"Have donnie do a loop around the red and blue boxes and then meet up with raph"	Donnie completes a full loop around the red and blue boxes, then ends within 1 grid point of Raph.
14	maneuver	Sim	"Have raph approach the person in white from the left while donnie passes around the right of the rack of boxes before approaching the same person from the other side"	Raph's final approach vector reaches the person from their left; Donnie's path passes around the right side of the rack and his final approach reaches the person from their right. Both robots end within 1 grid point of the person in white.
15	maneuver	Sim	"Have one robot move along the north edge of the map to the person in purple while the other robot travels along the south edge until it is directly south of the same person, then move north to the person"	Robot A stays within 1 grid point of the north edge for its entire traverse until reaching the person. Robot B stays within 1 grid point of the south edge until it is directly south of the person (same column ±1 grid point), then moves north. Both robots end within 1 grid point of the person in purple.
16	maneuver	AVL 1	"Have the robots switch places. Have raph move around the south of the chair and have Donnie move around the north of the chair."	Each robot ends within 1 grid point of the other robot's starting position. Raph's path passes to the south of the chair; Donnie's path passes to the north of the chair.
17	maneuver	AVL 2	"Send both robots to the person. Have one approach around the north of the boxes, and one approach around the south of the boxes."	Both robots end within 1 grid point of the person. One robot's path passes around the north side of the boxes; the other's passes around the south side.
18	maneuver	AVL 3	"Have Donnie circle around the box on the left and then go to the chair."	Donnie completes a full loop around the left box, then ends within 1 grid point of the chair.

License

Distributed under the Apache 2.0 License (see LICENSE).

Navigation Menu

Repository navigation

About

Repository files navigation

CoPlanVLM: Coordinated Path Planning for a Robot Team using Vision Language Models

Table of Contents

Introduction

Features

Project Architecture

Node Reference

Topics & Interfaces

Prerequisites

Workspace Setup

Configuration

OpenAI credentials

Camera calibration

Running in Simulation

1. Start the simulator and both robots

2. Start the planning stack

3. Send a mission

Running in the Lab

1. Bring up the Mocap room

2. Launch the ueye client:

3. Start the planning stack

4. Send a mission

Testing & Debugging

The bundled `test_data/` fixture

Offline harnesses

Ablations

Baselines

Debug artifacts

Test Prompts and Success Criteria

License

About

Releases

Packages

Used by

Contributors

Languages

Name		Name	Last commit message	Last commit date
config		config
launch		launch
nodes		nodes
resource		resource
scripts		scripts
test_data		test_data
world		world
.gitignore		.gitignore
LICENSE		LICENSE
README.md		README.md
package.xml		package.xml
requirements.txt		requirements.txt
setup.cfg		setup.cfg
setup.py		setup.py

Latest commit

History

Folders and files

Repository files navigation

CoPlanVLM: Coordinated Path Planning for a Robot Team using Vision Language Models

Table of Contents

Introduction

Features

Project Architecture

Node Reference

Topics & Interfaces

Prerequisites

Workspace Setup

Configuration

OpenAI credentials

Camera calibration

Running in Simulation

1. Start the simulator and both robots

2. Start the planning stack

3. Send a mission

Running in the Lab

1. Bring up the Mocap room

2. Launch the ueye client:

3. Start the planning stack

4. Send a mission

Testing & Debugging

The bundled test_data/ fixture

Offline harnesses

Ablations

Baselines

Debug artifacts

Test Prompts and Success Criteria

License

About

Resources

Stars

Watchers

Forks

Releases

Packages

Used by

Contributors

Languages

The bundled `test_data/` fixture
