pico-bootLoader

pico-bootLoader is a bootloader for RP2350 boards. Its primary purpose is to host a collection of retro-game emulators and native ports of Doom, Duke Nukem 3D and Quake II on a single board and to let the user choose which one to run from an on-screen menu, without reconnecting the board to a computer.

It runs on ten board configurations, each with its own ready-made binary — see Supported hardware for the file names:

Raspberry Pi Pico 2 / Pico 2 W, or a Pimoroni Pico Plus 2, with an Adafruit DVI breakout and a microSD breakout — or the PicoNES PCB that replaces that wiring
Raspberry Pi Pico 2 / Pico 2 W on a Pimoroni Pico DV Demo Base
Adafruit Fruit Jam
Adafruit Metro RP2350
Adafruit Feather RP2350 with a TLV320DAC3100
Waveshare RP2350-Zero with the PicoNES Mini PCB
Waveshare RP2350-PiZero
Waveshare RP2350-USB-A, optionally on the PicoNES Micro PCB
Murmulator M2, or an RP2350 Plus on the PicoSNES PCB, which uses the same pin map
Olimex RP2040-PICO-PC with a Raspberry Pi Pico 2

Every one of them outputs video over DVI/HDMI and reads its applications from an SD card. RP2040 boards are not supported: the flash layout and the UF2 checks are RP2350-specific. The Olimex board is named after the RP2040 Pico it was designed for, but takes a Pico 2 in the same socket. The four PCBs are optional console-style carriers for boards already in this list — see Custom PCBs.

It is not limited to emulation, though: any RP2350 application can be made bootable and added to the menu — see Creating a bootable build of your own application.

An RP2350 board normally holds a single program. Running a different one means connecting it to a PC, holding BOOTSEL, and copying a new .uf2 over USB. pico-bootLoader replaces that procedure: the applications are placed on the board's SD card once, and from then on every power-on presents a menu. The menu is navigated with a USB game controller or a USB keyboard, in either a graphical mode with full-screen artwork per application or a plain text mode. Selecting an entry flashes the corresponding application (if it is not already resident) and starts it. A hardware reset or power cycle always returns to the menu.

Doom, Duke Nukem 3D and Quake II are included as native RP2350 ports — they are not emulated.

Getting started

Flash the bootloader. Download the loader .uf2 for your board from the Releases page; the table under Supported hardware, below, gives the file name for each board. Hold BOOTSEL, connect the board over USB, and copy the .uf2 onto the RP2350 drive.
Prepare the SD card. Download pico-bootLoader_sdcard.zip from the same Releases page and unpack it onto a FAT32- or exFAT-formatted card. The archive contains the emulators, the native ports, the menu artwork, a sample configuration file and the updateAll installer for ROM sets and game data. Alternatively, assemble the layout yourself as described in SD card layout.
Run updateAll. With the card still in the computer, start updateAll.exe from the card's updateAll folder; the program selects that card itself. Windows may report that the program is not signed: select More info, then Run anyway. On Linux or macOS, run python3 updateAll.py --sd <path of the card> from the same folder. updateAll installs the arcade ROM sets and the shareware or demo data of Doom, Duke Nukem 3D and Quake II, each in the folder its application reads, and downloads whatever is not at hand. Doom does not start without it. The ROM sets are not part of this project, and holding the rights to them is the user's responsibility; updateAll/README.md describes how to use only zips you already have. Running it again later installs the sets added since.
Add your games. The archive contains no games, ROMs or BIOS files. Each emulator's file browser opens in its own folder: /roms/NES, /roms/SNES, /roms/MD (Genesis / Mega Drive), /roms/PCE, /roms/GB, /roms/SMS (Master System and Game Gear), /roms/O2E (Videopac) or /roms/TI99, and at the root of the card when that folder does not exist. The BIOS files and the folders of ColecoVision, Doom, Duke Nukem 3D, Quake II and the arcade games are given under Bootable applications.
Run it. Insert the card and power on the board. The menu appears.

The Releases page provides two kinds of download: the per-board bootloader .uf2 binaries and the pico-bootLoader_sdcard.zip SD-card archive.

Release tags say which of the two changed:

Tag	What changed	What you need to do
`v0.N`	bootloader firmware	re-flash the board and refresh the SD card
`v0.N.M`	emulator binaries only	replace `/emu` on the SD card; no re-flash needed

Every release lists the exact emulator versions its archive ships, and the same table is in /emu/versions.txt on the card.

Supported hardware

Only RP2350 boards are supported; the partition scheme and the UF2 family checks are RP2350-specific. The board is selected at compile time through the HW_CONFIG value (defined in pico_shared/BoardConfigs.cmake). The same number names the SD-card folder the loader reads applications from (<BASEDIR>/<HW_CONFIG>/).

HW_CONFIG	Board	Bootloader binary
1	Pimoroni Pico DV Demo Base (Pico 2 / Pico 2 W)	`pico-bootLoader_PimoroniDVI_pico2_arm.uf2`
2	Adafruit DVI + microSD breakout, or the PicoNES PCB (Pico 2 / Pico 2 W / Pimoroni Pico Plus 2)	`pico-bootLoader_AdafruitDVISD_pico2_arm.uf2`
5	Adafruit Metro RP2350	`pico-bootLoader_AdafruitMetroRP2350_arm.uf2`
6	Waveshare RP2350-Zero with the PicoNES Mini PCB	`pico-bootLoader_WaveShareRP2350ZeroWithPCB_arm.uf2`
7	Waveshare RP2350-PiZero	`pico-bootLoader_WaveShareRP2350PiZero_arm_piousb.uf2`
8	Adafruit Fruit Jam	`pico-bootLoader_AdafruitFruitJam_arm_piousb.uf2`
9	Waveshare RP2350-USB-A (optionally on the PicoNES Micro PCB)	`pico-bootLoader_WaveShare2350USBA_arm_piousb.uf2`
13	Murmulator M2, or an RP2350 Plus on the PicoSNES PCB	`pico-bootLoader_MurmulatorM2_arm.uf2`
14	Adafruit Feather RP2350 (TLV320DAC3100 audio)	`pico-bootLoader_AdafruitFeatherRP2350_TLV320DAC3100_arm_piousb.uf2`
15	Olimex RP2040-PICO-PC with a Raspberry Pi Pico 2	`pico-bootLoader_OlimexPicoPC_arm.uf2`

Video output is DVI/HDMI on all boards. Boards whose video connector is wired to the RP2350 HSTX pins — HW_CONFIG 2, 5, 8, 13, 14 and 15 — drive it through the HSTX peripheral; the others use PicoDVI. A single SD card serves both kinds — artwork is cached in both pixel formats (see Artwork).

Olimex RP2040-PICO-PC (HW_CONFIG 15)

The Olimex RP2040-PICO-PC is a carrier board for a Raspberry Pi Pico, with HDMI, a microSD slot, a USB-A port, an audio jack and a UEXT connector. Despite its name, the loader runs on it with a Raspberry Pi Pico 2 in the socket in place of the original Pico. Flash pico-bootLoader_OlimexPicoPC_arm.uf2 and put the applications in /emu/15/.

Video and sound. HDMI is driven through HSTX. Sound plays on HDMI and on the audio jack at the same time.
Controllers. A USB controller or keyboard goes in the USB-A port, and a NES or SNES controller can be wired to the UEXT connector. The USB-A port is connected to the Pico 2's own USB port, so a USB controller cannot be used while the card is shown to a computer in USB drive mode; leave that mode from the NES/SNES controller or by ejecting the drive.
Flash. A standard Pico 2 has 4 MB of flash, which leaves 3.5 MB for the application partition.
PSRAM. A standard Pico 2 has no PSRAM. A PSRAM chip can be added with its chip-select pin on GPIO 8. Without it, the entries that require PSRAM — the Super Nintendo emulator, PCEngine CD, OutRun, Duke Nukem 3D and doom_tiny_full — still appear in the menu but do not run.

Support for this board was contributed by DnCraptor.

Pico 2 W

The Pico 2 W runs the ordinary pico2 binary for its hardware configuration; there is no separate build for it. Up to v0.4 there was one, purely so that the on-board LED would work: that LED hangs off the wireless chip and reaching it means linking the CYW43 driver, which filled the 512 KB bootloader partition to within a few kilobytes and left no room for USB drive mode.

Everything on the board therefore works as it does on a Pico 2, except the on-board LED, which no longer blinks as a heartbeat or while an application is being flashed. A build with the LED can still be produced locally with ./bld.sh -2 -c <HW_CONFIG> -w; it is not released and USB drive mode is off in it by default.

Video

Click the image below to watch pico-bootLoader in action.

Bootable applications

The following emulators and native ports are supported. Each is built from its own repository and identified by the program name embedded in its .uf2.

System	Program name	Source repository
Nintendo Entertainment System	`piconesPlus`	pico-infonesPlus
Super Nintendo Entertainment System	`picosnesPlus`	pico-snesPlus
Sega Genesis / Mega Drive	`picogenesisPlus`	pico-genesisPlus
NEC PC Engine / PCEngine CD	`picopcePlus`	pico-pcePlus
Nintendo Game Boy / Game Boy Color	`PicoPeanutGB`	pico-peanutGB
Sega Master System / Game Gear	`picosmsPlus`	pico-smsplus
Philips Videopac / Magnavox Odyssey²	`picoPacPlus`	pico-pacPlus
ColecoVision	`colecojam`	Adafruit_ColecoJam
Texas Instruments TI-99/4A	`pico994A`	pico-994A
Doom (native port, not emulated)	`doom_tiny`	pico-doom
Duke Nukem 3D (native port, not emulated)	`duke3d_game`	pico-duke3D
Quake II (native port, not emulated)	`pico-quake2`	pico-quake2
OutRun (native port, not emulated)	`picoOutRun`	pico-outrun
Phoenix (arcade)	`picoPhoenix`	pico-phoenix
Moon Cresta (arcade)	`picoMoonCresta`	pico-mooncresta
Galagino (arcade: 47 games, among them Pac-Man, Galaga, Donkey Kong and Xevious)	`picoGalagino`	pico-galagino
Dragon's Lair (arcade, laserdisc)	`picoDragonsLair`	pico-dragonslair
1943 (arcade: 1943 and 1943 Kai)	`pico1943`	pico-1943

The following emulators need a bios in /bios on SD:

Nintendo Entertainment System : For Famicom Disk System games fds-bios.rom
Philips Videopac / Magnavox Odyssey²: o2rom.bin
PCEngine CD : Super CD-ROM System (Japan) (v3.0).pce or another variant.
Texas Instruments TI-99/4A: 994aROM.bin and 994aGROM.bin, both required — nothing runs without them. 994aDISK.bin (disk controller) and spchrom.bin (speech vocabulary) are optional.

TI-99/4A is built for every board the loader supports. Cartridges go in /roms/TI99 as .rpk Rom PacKs (preferred — one file per cartridge) or as the classic C/D/G .bin sets; the emulator's own tools/mkrpk.py converts between them. TI BASIC is reachable without a cartridge. A USB keyboard acts as the TI keyboard, and joysticks come from USB gamepads, NES/SNES pads or Wii controllers. PSRAM is not required, but without it the disk drives are unavailable and cartridge ROM is capped at 32 KB.

ColecoVision runs on the Adafruit Fruit Jam (HW_CONFIG 8) only. The emulator, Adafruit_ColecoJam, is written and maintained by Dan Cogliano (@cogliano) outside this project. It expects everything in /coleco/ on the SD card: the 8 KB ColecoVision BIOS as COLECO.BIN, and the games as .ROM files. Neither the BIOS nor any game is included.

Doom runs on five boards: Adafruit Fruit Jam (HW_CONFIG 8), the Adafruit DVI + MicroSD breakout combination (2), Murmulator M2 (13), Adafruit Feather RP2350 with a TLV320DAC3100 (14) and the Olimex RP2040-PICO-PC with a Pico 2 (15). It ships in two variants: doom_tiny, the shareware episode, whose WAD the loader flashes together with the engine from a data image, /roms/doom/doom1-whx-bootloader.uf2 (see Auxiliary data images); and doom_tiny_full, registered/Ultimate DOOM, which carries no WAD in flash and instead reads /roms/doom/doom.whd from the SD card at boot, so it needs a board with PSRAM. The data image is not in the SD-card archive: updateAll makes it from the shareware WAD in the pico-doom repository and installs it in /roms/doom/. It is the same file for every board. Without it, the menu names the missing file instead of starting the game.

Duke Nukem 3D runs on four boards: Adafruit Fruit Jam (HW_CONFIG 8), the Adafruit DVI + MicroSD breakout combination (2, on a Pimoroni Pico Plus 2), Murmulator M2 (13) and the Olimex RP2040-PICO-PC with a Pico 2 (15, with a PSRAM chip fitted on GPIO 8). It needs PSRAM on all four. There is no companion data image: DUKE3D.GRP — shareware or registered/Atomic — is streamed from /roms/duke3d/ on the SD card, with savegames and duke3d.cfg written next to it. updateAll installs the shareware version 1.3d there. All four have been tested on hardware.

Quake II runs on two boards: Adafruit Fruit Jam (HW_CONFIG 8) and the Adafruit DVI + MicroSD breakout combination (2, on a Pimoroni Pico Plus 2). It needs 8 MB of PSRAM and 16 MB of flash. The game data is not included: updateAll installs the demo, or download pico-quake2_demo_sdcard.zip from the pico-quake2 releases and unpack it to the root of the card, which puts pak0.pak in /roms/quake2/baseq2/; the baseq2 folder of the full game goes in the same place. Savegames and settings are written there too. The first load of each level copies its textures, models and sounds from the card into flash, above the application, and takes considerably longer than later loads. Other applications may overwrite that copy; it is then refreshed on the next load. On HW_CONFIG 2, Quake II reads USB controllers only from a USB-A socket on GPIO 20 (D+) and 21 (D−), not from the Pico's own USB port that the loader and the emulators use; NES and SNES controllers in the controller ports work as usual. Quake II is an early pre-release; its README lists the known limitations.

OutRun is a port of the Cannonball engine and the first entry in the Arcade category. It is built for five boards: Adafruit Fruit Jam (HW_CONFIG 8), the Adafruit DVI + MicroSD breakout combination (2, on a Pimoroni Pico Plus 2), Murmulator M2 (13), Adafruit Feather RP2350 with a TLV320DAC3100 (14) and the Olimex RP2040-PICO-PC with a Pico 2 (15, with a PSRAM chip fitted on GPIO 8). It needs PSRAM on all five, and an HSTX board: on the bit-banged PicoDVI configurations the system clock is tied to the pixel clock and the engine is too slow, so those boards are not built. There is no companion data image. The OutRun ROM set is copyright SEGA and is not distributed with the bundle: copy the unzipped MAME outrun (revision B) set to /roms/ORUN on the SD card and the game prepares its data in PSRAM at startup, which takes a few seconds on every boot. If the ROMs are missing the game says so on screen rather than failing silently. The loader's own USB drive mode is the easiest way to put them on the card without taking it out of the board.

Phoenix is the second Arcade entry: an emulation of Amstar's 1980 arcade board. It runs on every board the loader supports, and needs neither PSRAM nor HSTX. The Phoenix ROM set is copyright Amstar and is not distributed with the bundle: copy MAME's phoenix.zip (the Amstar parent set) to /roms/arcade/PHOENIX on the SD card, either as it is or unzipped. Missing files are named on screen. Phoenix is a vertical game: by default the picture is turned upright for a normal monitor, and the Tate mode setting shows it unrotated for a monitor turned on its side.

Moon Cresta is the third Arcade entry: an emulation of Nichibutsu's 1980 arcade board, built on Galaxian hardware. Like Phoenix, it runs on every board the loader supports and needs neither PSRAM nor HSTX. The Moon Cresta ROM set is copyright Nichibutsu and is not distributed with the bundle: copy MAME's mooncrst.zip (the Nichibutsu parent set) to /roms/arcade/MOONCRESTA on the SD card, either as it is or unzipped. Missing files are named on screen. It has the same Tate mode setting as Phoenix.

Galagino is the fourth Arcade entry: a port of Till Harbaum's Galagino and of its fork GalaginoPlus, 47 arcade games in one application, chosen from a menu of their logos. Among them are Pac-Man, Ms. Pac-Man, Galaga, Galaxian, Donkey Kong, Frogger, Dig Dug, 1942, Space Invaders, Mr. Do!, BurgerTime, Time Pilot, Mappy and Xevious. It runs on every board the loader supports. The ROM sets are copyright of their makers and are not distributed with the bundle: copy each game's MAME zip to its own folder below /roms/arcade on the SD card, either as it is or unzipped, for example puckman.zip to PACMAN and galaga.zip to GALAGA. The pico-galagino README lists every set and its folder; Phoenix and Moon Cresta use the same sets and folders as their own entries. Its menu lists the games whose sets are complete. A game is read from the card each time it starts. On boards without PSRAM the larger games, among them 1942, BurgerTime, Gyruss and Xevious, are copied into flash instead, the first time they are started: the board shows a notice, restarts, makes the copy, which takes a few seconds, and starts the game. When the loader has since written another application over that flash, the copy is made again. High scores are saved on the card, in /SAVES/GALAGINO. It has the same Tate mode setting as Phoenix, and Quit game in its settings menu returns to its game menu.

Dragon's Lair is the fifth Arcade entry: an emulation of Cinematronics' 1983 laserdisc arcade board and its Pioneer LD-V1000 player. It runs on every board the loader supports and needs neither PSRAM nor HSTX. The game is copyright Cinematronics and Don Bluth and is not distributed with the bundle. Two files are needed in /roms/arcade/DLAIR on the SD card: MAME's dlair.zip (revision F2), either as it is or unzipped, and the laserdisc file lair.pld. The latter is converted once on a computer from MAME's laserdisc image dlair.chd, with the Windows program ld2pico.exe, which the SD-card archive holds in its ld2pico folder; it is about 260 MB. See ld2pico/README.md, and for other systems the pico-dragonslair README. Missing files are named on screen.

1943 is the sixth Arcade entry: an emulation of Capcom's 1987 arcade board, which plays 1943: The Battle of Midway and 1943 Kai: Midway Kaisen. It runs on every board the loader supports and needs neither PSRAM nor HSTX. The games are copyright Capcom and are not distributed with the bundle: copy MAME's 1943.zip to /roms/arcade/1943 and 1943kai.zip to /roms/arcade/1943KAI on the SD card, either as they are or unzipped. Of 1943, the US, European and Japanese sets are all accepted; a merged 1943.zip holds them all. When both games are on the card, a menu chooses one at start-up, and Quit game in the settings menu returns to it. On boards without PSRAM a game is copied into flash the first time it is started; when the loader has since written another application over that flash, the copy is made again, which takes a few seconds. Missing files are named on screen. It has the same Tate mode setting as Phoenix.

The ROM sets of the Arcade entries can also be installed with updateAll, which the SD-card archive holds in its updateAll folder: updateAll.exe for Windows, and equivalent Python and PowerShell scripts. It extracts each set from the MAME zips into the folder its game reads. Zips that are not at hand are downloaded from a third-party ROM database (ArcadeROMsDB_MiSTer) that is configured by default; switch downloads off to use only zips you supply. The ROM sets are not part of this project, and holding the rights to them is the user's responsibility. updateAll also installs the freely distributed shareware and demo data of Doom, Duke Nukem 3D and Quake II. See updateAll/README.md.

PCEngine CD needs PSRAM.

Additional emulators may be added over time.

For board-by-board wiring, supported display modes and more refer to the pico-infonesPlus documentation. The set of supported boards and their pinouts is identical between the two projects.

How it works

The bootloader resides at the start of flash, so the RP2350 bootrom always runs it first. On each boot it:

Reads the optional /boot.txt, the index file, and scans the board's application folder on the SD card (<BASEDIR>/<HW_CONFIG>/*.uf2).
Reads each .uf2's embedded program name from its binary_info on disk — nothing is flashed to do this — and reads the resident application's name via XIP.
Filters the files against the index (an allow-list), then displays the menu and pre-selects the entry that matches the application currently in flash.
On selection:
- if the chosen application is already resident, it is started with a VTOR jump — no flash operation and no SD I/O, so the launch is near-instant;
- otherwise the application is flashed into the application partition, with a progress indicator, and then started;
- if the copy on the SD card differs from the resident image (a CRC mismatch, for example after a newer build was placed on the card), it is re-flashed before starting.
Whether the resident image still matches its copy on the card is decided at start-up. After it flashes an application, the loader records the file's size and timestamp and the CRC of the flashed image in <BASEDIR>/<HW_CONFIG>/.flashed. While the file is unchanged and the flash contents still have that CRC, the file is not read again; otherwise the whole file is compared, as it was before the record existed. The record may be deleted at any time; the next start rebuilds it.

The bootloader only ever jumps to an application; it never transfers the boot vector. Consequently it cannot be locked out: any reset or power cycle returns to the menu, and flashing a defective application costs nothing more than another selection.

The flash memory map (16 MB flash, Adafruit Fruit Jam shown) is:

0x10000000  Bootloader             512 KB   <- the bootrom always runs this
0x10080000  Application partition  15.5 MB  <- the selected app is flashed and started here
0x11000000  end of flash

Input devices

The menu is operated with USB Human Interface Devices. All connected input devices are active simultaneously.

USB game controller — standard USB HID gamepads and XInput controllers.
USB keyboard — a standard USB HID keyboard.

On boards that provide the necessary wiring, NES/SNES controller ports and a Wii Classic controller (over I²C) are also supported and use their own buttons. A SNES controller on such a port, the built-in pad of the PicoSNES included, confirms with A and returns with B, as a USB SNES controller does.

Action	Game controller	USB keyboard
Move through the list (text mode)	D-pad UP / DOWN	↑ / ↓
Slide between applications (graphical mode)	D-pad LEFT / RIGHT	← / →
Change artwork theme (graphical mode)	D-pad UP / DOWN	↑ / ↓
Launch the selected application	A	X
Open the options menu	SELECT	A
Open the help screen	START	S
Confirm the highlighted option	A	X
Return from a screen	B	Z
Wake from screensaver	any button	any mapped key

SELECT and START are used for the options and help screens because they are the only spare buttons present on every supported input device, including NES controllers. On controllers whose face buttons are labelled differently, the on-screen prompts follow the attached device: A and B appear as B and A on an XInput pad, and as ○ and ✕ on a DualShock or DualSense.

The chosen menu mode and artwork theme are remembered across boots. Inside a running emulator built on the shared framework, SELECT + START opens its menu, which offers Return to emulator selection to reboot back into this menu.

The options menu

SELECT opens a small menu on top of the application picker. Move through it with UP / DOWN, confirm with A, and return with B.

Entry	Effect
Help	Opens the help screen described under On-screen help.
Menu mode	Switches between the text list and the full-screen artwork view. The choice is written to `/boot.txt` and restored on the next boot.
Enter BOOTSEL mode	Restarts the board into the RP2350 ROM bootloader, where it appears on a computer as a drive named `RP2350`. Copy a `.uf2` onto it to update the bootloader itself, or reset the board to return to the menu.
USB drive mode	Presents the SD card to a computer as a USB mass-storage device, so applications, the index file and artwork can be changed without removing the card.

Below the entries, a System section shows the board's HW_CONFIG number and name, and the total, used and free capacity of the flash memory, the SRAM, the PSRAM (only when the board has it) and the SD card, together with the card's file system (FAT32 or exFAT). Used flash is the 512 KB bootloader partition plus the size of the application currently installed; data an application stores in flash beyond its own image, such as a ROM on a board without PSRAM, is not counted. Free SRAM is the memory the bootloader can still allocate.

USB drive mode

USB drive mode presents the SD card to a computer as a USB mass storage device, so games can be added or removed without taking the card out of the console. Connect the console to the computer, open the options menu and choose USB Drive Mode. The card appears on the computer as a removable drive.

When you are finished, eject the drive on the computer. The console notices this and leaves USB drive mode by itself. Pressing B on the console leaves as well, for when no computer is attached. The game list is re-read on the way out, so files added from the computer appear without having to restart.

Note

Transfers are slow. The console is a USB full-speed device and reaches the card a sector at a time over SPI, so copying is far slower than reading the card in a card reader. USB drive mode is meant for adding or replacing a few games. For filling a card, or for copying a large amount of data, take the card out and use a card reader.

Behaviour depends on where controllers are connected on your board.

Board	Behaviour
Controllers on a separate USB port (boards built with PIO USB, such as the Fruit Jam)	The console's own USB port is free, so controllers keep working and the screen stays on. The menu returns to the game list when you are done.
Controllers on the console's own USB port	That port is the one connected to the computer, so a USB controller cannot be used while the card is mounted. Press B on a controller in the NES port, or eject the drive on the computer. The console restarts afterwards.

USB drive mode is available on every released binary, the Pico 2 W included — see Pico 2 W for what that board does and does not do.

Custom PCBs

Community PCB designs turn a supported board into a finished console: the PicoNES in two versions, the PicoNES Mini and the PicoNES Micro, each with an optional 3D-printed case, and the PicoSNES, which fits inside a SNES controller. Every one of them is just a neater way to build a hardware configuration the loader already supports, so nothing about the firmware changes: flash the binary for that HW_CONFIG and put the applications in the matching /emu/<HW_CONFIG>/ folder.

Design	Picture	Controller ports	Board it carries	HW_CONFIG	Designed by

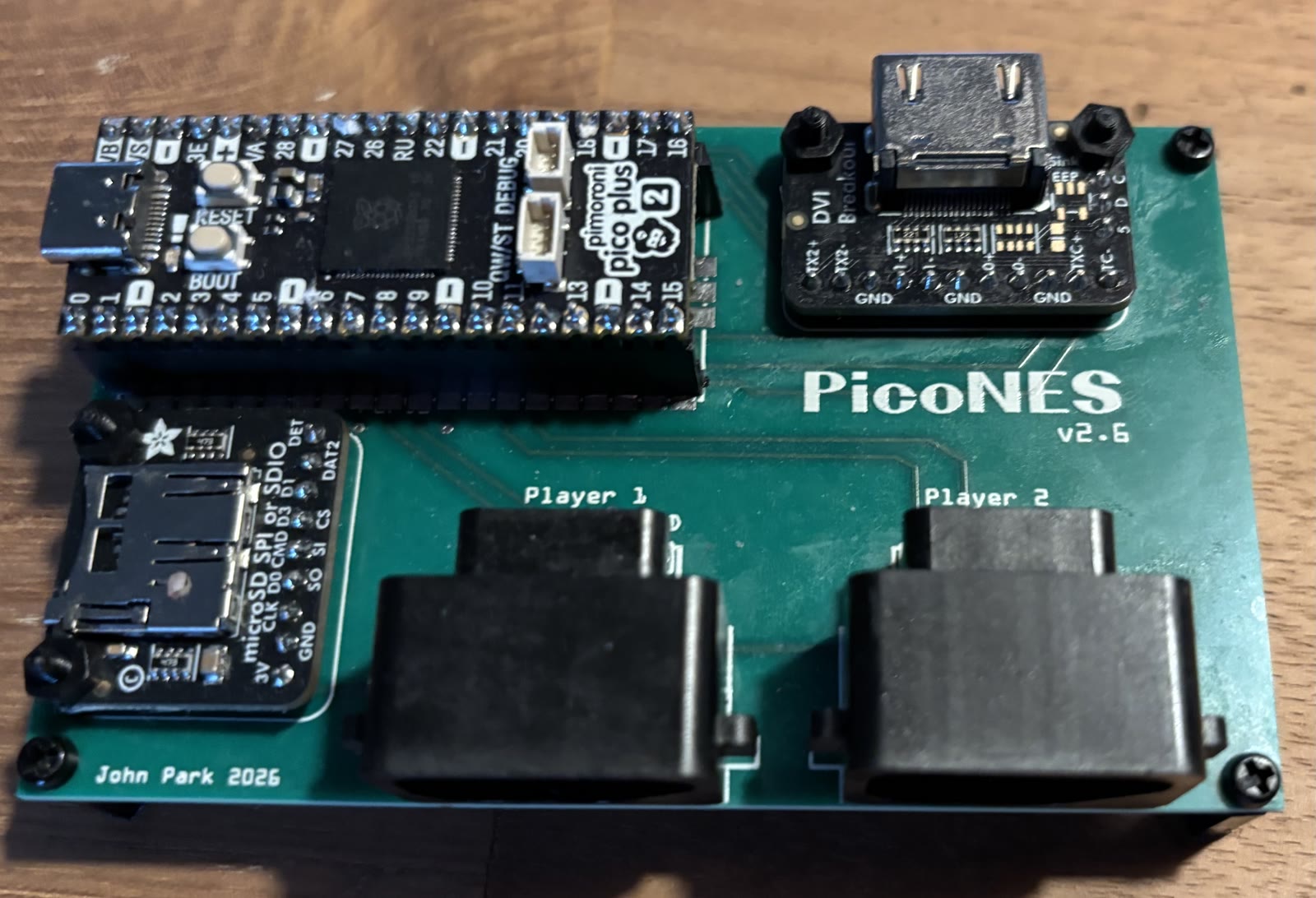

PicoNES v2.6	_{See note}	2 × NES	Pico 2, Pico 2 W or Pimoroni Pico Plus 2	2	John Edgar Park

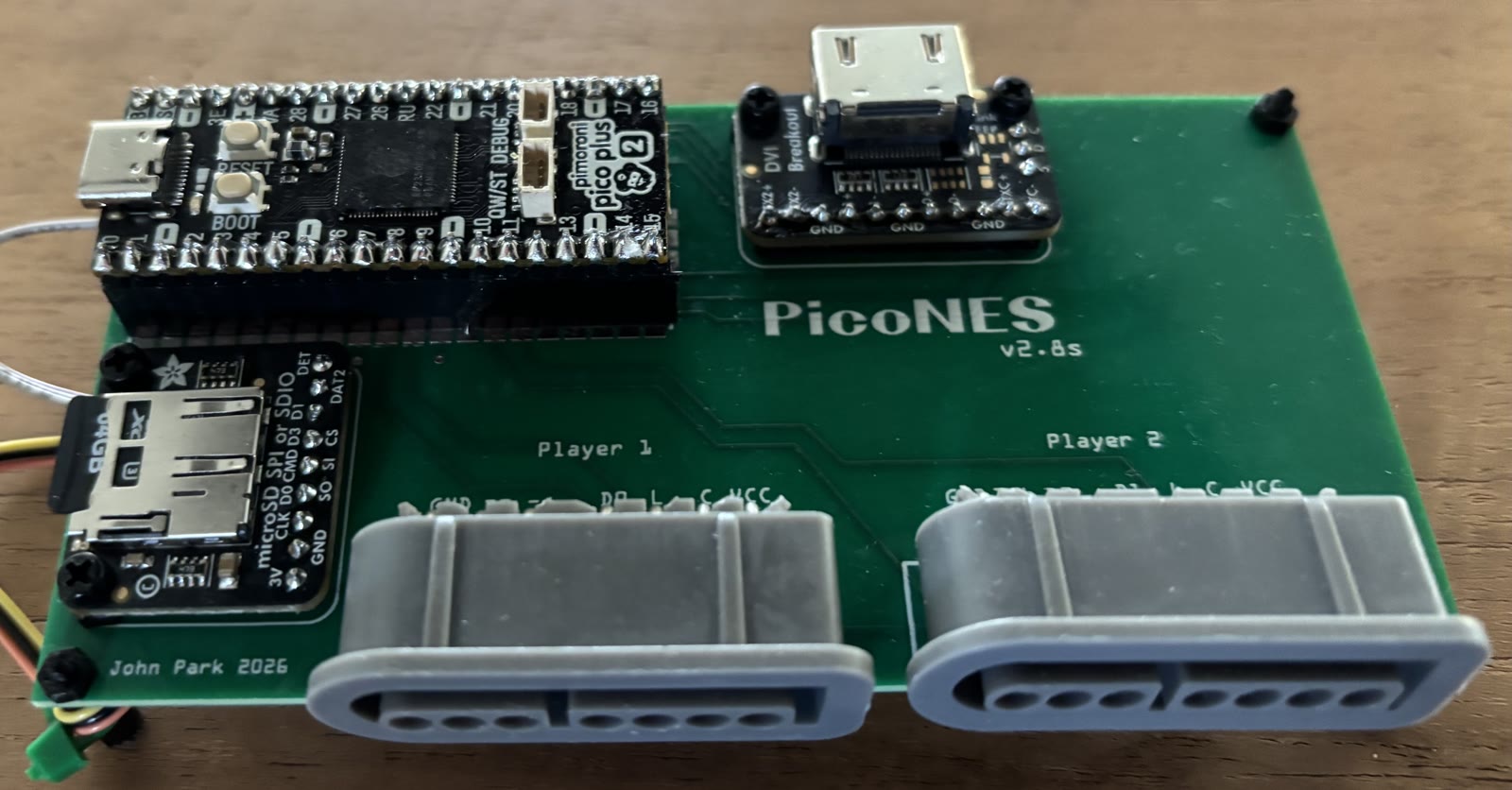

PicoNES v2.8	_{See note}	2 × SNES	Pico 2, Pico 2 W or Pimoroni Pico Plus 2	2	John Edgar Park
PicoNES Mini		2 × NES	Waveshare RP2350-Zero	6	Gavin Knight
PicoNES Micro		None, USB controller only	Waveshare RP2350-USB-A	9	Gavin Knight
PicoSNES		Built into a SNES controller	RP2350 Plus	13	Gavin Knight

Note

The PicoNES v2.6 and v2.8 are shown with a Pimoroni Pico Plus 2. A Raspberry Pi Pico 2 or Pico 2 W can also be fitted.

Parts lists, ordering instructions, assembly notes, the pin assignment, the 3D-printed cases and the older design versions of the PicoNES boards are described in the PCB README. Their Gerber files are attached to every release of this project. The PicoSNES archive is published on its own release page.

The Waveshare RP2350-PiZero (HW_CONFIG 7) needs no PCB, since it already carries its own HDMI and microSD connectors, but it has a matching NES-like case: thingiverse.com/thing:6758682, designed for two NES controller ports.

Note

Sellers on AliExpress have copied the PicoNES design and sell pre-populated boards. For questions about those, contact the seller.

PicoNES PCB (HW_CONFIG 2)

The PicoNES PCB, by John Edgar Park, carries the Pico, the DVI and microSD breakouts and two controller ports. It comes in two versions, which differ only in the controller ports: v2.6 with NES controller ports and v2.8 with SNES controller ports. It runs the AdafruitDVISD loader binary and reads its applications from /emu/2/.

A Pico 2 or Pico 2 W can be soldered flat onto the PCB or mounted on male pin headers. A Pimoroni Pico Plus 2 must be mounted on pin headers, because the SP/CE connector on its back prevents it from lying flat. Optional female socket headers, soldered into the PCB, let the board be plugged in and swapped without desoldering.

Controllers on the two GPIO controller ports:

v2.8: original SNES controllers plug in directly.
v2.6: NES controllers plug in directly. A SNES controller works as well, but needs an adapter cable — see here how to make one. Ready-made adapters are sold on AliExpress, but they do not always work and are not recommended.

Two controllers give a two-player setup; a USB controller for player 1 and a controller in either port for player 2 works just as well.

The parts lists and assembly notes are in the PCB README: PicoNES v2.6 and PicoNES v2.8.

NES controller ports (v2.6)	SNES controller ports (v2.8)

Which loader binary to flash

Pico 2, Pico 2 W and Pimoroni Pico Plus 2 — pico-bootLoader_AdafruitDVISD_pico2_arm.uf2

None of the three needs a build of its own. The loader reads the real flash size from the chip at boot and detects PSRAM at runtime, so the same pico2 image adapts to whichever board is plugged in. On a Pico 2 W the on-board LED stays dark, since that LED is driven by the wireless chip; see Pico 2 W.

What the Pimoroni Pico Plus 2 adds

The Pimoroni Pico Plus 2 brings 16 MB of flash and 8 MB of PSRAM, and both change what the menu can offer:

Flash. The application partition is whatever is left after the loader's 512 KB — 15.5 MB on a Pimoroni Pico Plus 2, but only 3.5 MB on a 4 MB Pico 2. An application that does not fit is simply not listed in the menu rather than reported as an error, so on a Pico 2 some entries are missing.
PSRAM. The entries that require it — Duke Nukem 3D, Quake II, PCEngine CD and doom_tiny_full — are the Pimoroni Pico Plus 2's alone; neither Pico 2 has PSRAM. Quake II also needs the 16 MB of flash. See Bootable applications.

3D printed case

Gavin Knight (DynaMight1124) designed an NES-like case for the v2.6 PCB: thingiverse.com/thing:6689537. It does not fit the v2.8 PCB. Two top covers are available, one with a button that presses the BOOTSEL button for firmware updates and one without. All parts are shown in the PCB README. For questions about the case, please contact the designer on the Thingiverse page.

Important

If the Pico is mounted with male headers, download the latest top cover. Headers raise the Pico, and only the newest cover leaves room for the USB cable — the older ones assume a Pico soldered flat onto the PCB.

Top cover	Base

PicoNES Mini PCB (HW_CONFIG 6)

The PicoNES Mini, by Gavin Knight (DynaMight1124), is a smaller PCB for a Waveshare RP2350-Zero, with two NES controller ports. It uses cheaper components that are harder to solder, and is recommended only for builders with good soldering skills.

Flash pico-bootLoader_WaveShareRP2350ZeroWithPCB_arm.uf2 and put the applications in /emu/6/. The design also exists in an RP2040-Zero flavour, which this bootloader cannot use — it is RP2350-only.

The parts list and build instructions are in the Instructables guide, step 1. See also PicoNES Mini in the PCB README. The 3D-printed case is available on Thingiverse.

PicoNES Micro PCB (HW_CONFIG 9)

The PicoNES Micro, by Gavin Knight (DynaMight1124), is a very small PCB for the Waveshare RP2350-USB-A, for one player with a USB controller. It uses 0603-size SMD components and requires micro-soldering skills.

Flash pico-bootLoader_WaveShare2350USBA_arm_piousb.uf2 and put the applications in /emu/9/. The game controller plugs into the USB-A port; the USB-C port is for power and for flashing the firmware.

The parts list, build instructions and case are in the Instructables guide, steps 2 and 3. See also PicoNES Micro in the PCB README.

PicoSNES PCB (HW_CONFIG 13)

The PicoSNES, by Gavin Knight (DynaMight1124), is an excellent project and the most self-contained of the four designs: the complete console is built into the shell of a SNES controller, original or aftermarket. The HDMI and USB-C ports and the microSD slot are let into the shell, and the controller's own buttons are read through CD4021 shift registers, as in an original SNES pad. Powered through an HDMI 5 V injector, it needs nothing more than a single cable to the display. The board it carries is an RP2350 Plus (4 MB or 16 MB of flash), soldered flat onto the PCB. The current design is v1.0 (Gerber_SNES_PicoSNES_v1.0.zip); order it at 1.6 mm thickness with the manufacturer's standard settings.

The PCB uses the Murmulator M2 pin map, so it runs the Murmulator M2 binary: flash pico-bootLoader_MurmulatorM2_arm.uf2 and put the applications in /emu/13/. The built-in controller is player 1; there is no second controller port.

First flash. Flash the loader before closing the shell — the BOOT button on the RP2350 Plus is only reachable while the controller is open. Later loader updates do not need it: Enter BOOTSEL mode in the options menu does the same over the USB-C port.
PSRAM. The RP2350 Plus has no PSRAM. The build guide shows how to add a PSRAM chip piggybacked on the flash chip, with its chip-select pin wired to GPIO 8. Without it, the entries that require PSRAM still appear in the menu but do not run — see Bootable applications.
Power. The USB-C port powers the board, and its data lines are also used for flashing and for USB drive mode. Alternatively, an HDMI 5 V injector powers it through the HDMI cable.

Warning

Never connect the HDMI 5 V injector and the USB-C cable at the same time; the supply can feed back into the other source.

Note

Good soldering skills are required: the HDMI and USB-C connectors are fine pitch, the resistor networks are 0603 size, and the USB data lines are soldered through the PCB onto the test points of the RP2350 Plus. The controller shell also has to be cut and filed to make room for the ports and the microSD slot.

Gavin's build guide on Instructables is thorough and well illustrated. It covers the component list, the order in which to assemble the PCB, the PSRAM modification and the trimming of the controller shell: https://www.instructables.com/PicoSNES-RP2350-Retro-Gaming-Inside-a-Controller

Many thanks to Gavin for this amazing work, and for designing it around this project.

SD card layout

/boot.txt                                  configuration (created/updated by the menu)
/emu/                                      BASEDIR (default /emu, override in boot.txt)
/emu/<HW_CONFIG>/*.uf2                     applications for this board (e.g. /emu/8/)
/emu/<HW_CONFIG>/.flashed                  what the loader last flashed (written by the loader)
/emu/emulators.txt                         the index / allow-list (name set by INDEX)
/emu/categories.txt                        optional category list (see Categories)
/emu/<category>.txt                        one index file per category, named by categories.txt
/emu/versions.txt                          which version each application was built from (informational)
/emu/assets/themes/0/<image_key>.png|.jpg  default artwork theme, converted on first use
/emu/assets/themes/0/Categories/*.png|.jpg category artwork (with categories.txt)
/emu/assets/themes/1..9/                   optional extra themes (UP/DOWN to switch)
/emu/assets/screensaver/*.png|.jpg         screensaver images (optional, not themed)
/roms/doom/doom1-whx-bootloader.uf2        Doom!'s WAD data image, flashed by the loader (from updateAll)
/updateAll/                                ROM set and game data installer, run on a computer (optional)
/ld2pico/                                  Dragon's Lair laserdisc converter, run on a computer (optional)

Applications live in a subfolder named after the board's HW_CONFIG number, so one card can carry builds for several boards side by side.

Configuration (`boot.txt`)

A file in the root of the SD card. If it is absent, the defaults below apply. A commented sample ships in the repository root: boot.txt.

One KEY=VALUE per line; whitespace around = and the value is trimmed.
Lines starting with # or ; are comments; blank lines are ignored.
Keys are case-insensitive. SCREENSAVER values are case-insensitive; BASEDIR/INDEX values are filesystem paths and case-sensitive.
A malformed file (unknown key, duplicate key, missing = or value) produces an on-screen error at boot — correct the file and reset.

Key	Default	Meaning
`BASEDIR`	`/emu`	Absolute SD path (must start with `/`, max 63 characters) under which everything lives: application folders, the index, artwork, screensaver images.
`INDEX`	`emulators.txt`	Bare file name (no slashes) of the index file inside `BASEDIR`. Only read when `BASEDIR` holds no `categories.txt` — see Categories.
`SCREENSAVER`	see note	`STARFIELD` — images fly outward from the screen centre, growing toward the camera. `BLOCKS` — images float and bounce off the edges; the on-screen set is re-picked every 15 s. The screensaver starts after ~30 s of inactivity and any button press exits it.
`GUI`	`1`	`0` = text menu, `1` = graphical menu. Rewritten whenever SELECT toggles the mode. Replaces the `.guimode` file used by earlier releases, which is migrated and deleted automatically.
`THEME`	`0`	Active artwork theme, `0`–`9` — see Artwork themes. Rewritten whenever UP/DOWN changes the theme in graphical mode. A theme that is not on the card falls back to `0`.
`VIEW`	`CATEGORIES`	Which level the menu was left on: `CATEGORIES` or `APPS`. Ignored without a `categories.txt`.
`CATEGORY`	—	`category_name` of the category last opened.
`APP`	—	`program_name` of the application last selected.

VIEW, CATEGORY and APP record where you were so the menu returns there on the next boot. The bootloader maintains them; there is normally no reason to edit them by hand. Both names are matched against what is actually on the card, so renaming a category or an application starts you at the first entry rather than at the wrong one. To remember nothing, leave the key out altogether — an empty value (CATEGORY= with nothing after it) is a syntax error.

Screensaver default. When /boot.txt is absent the default is STARFIELD; when the file is present but the key is omitted, it is BLOCKS. Set the key explicitly if the choice matters.

The bootloader writes this file. Changing the menu mode or the artwork theme rewrites the corresponding GUI= / THEME= line, and moving around the menu rewrites VIEW=, CATEGORY= and APP=. Nothing else is touched: comments, blank lines, key order, spacing and any other keys are copied through unchanged, so the file stays yours to edit. If /boot.txt does not exist, the first such change creates it with the current effective value of every key — SCREENSAVER included, so that materialising the file cannot quietly change the screensaver through the asymmetry noted above.

Updates are written to /boot.txt.tmp, re-parsed to confirm they are valid, and only then renamed into place; if a power cut interrupts the rename, the next boot adopts the .tmp. A card that cannot be written to (write-protected or full) is not an error — the change applies for the session and the help screen reports that it was not saved.

The index file (allow-list)

<BASEDIR>/<INDEX> — by default /emu/emulators.txt — determines what appears in the menu, and in what order. Only .uf2 files whose embedded program name matches a row are listed; anything else in the application folder is ignored. The same format is used by each category's config file (see Categories). One row per application:

<program_name>;<image_key>;<display_name>[;<aux_uf2>]

# program_name  ; image_key ; display_name              ; optional aux data uf2
piconesPlus     ; nes       ; Nintendo Entertainment System
picogenesisPlus ; md        ; Sega Genesis/Mega Drive
doom_tiny       ; doom      ; Doom!                     ; doom/doom1-whx-bootloader.uf2

Fields are separated by ;, whitespace is trimmed, and # starts a comment line. A maximum of 32 rows is allowed.
Applications are shown in the order the rows are written.
program_name (max 32 characters) — matched case-insensitively against the name each .uf2 embeds via pico_set_program_name() (read from its binary_info, without flashing anything). The .uf2 file name is irrelevant; files may be renamed freely.
image_key (max 16 characters) — basename of the menu artwork: <BASEDIR>/assets/<image_key>.png (or .jpg/.jpeg).
display_name (max 40 characters) — the label shown in the menu.
aux_uf2 (optional, max 64 characters) — path of a companion data .uf2, relative to /roms, flashed alongside the application. The loader looks for it in /roms first, then for its file name in the <BASEDIR>/<HW_CONFIG>/ folder (see Auxiliary data images).

Artwork

Ordinary images are placed on the card and converted by the bootloader itself:

Menu artwork — <BASEDIR>/assets/themes/<N>/<image_key>.png|.jpg|.jpeg, one per index row, shown full-screen in graphical mode. <N> is the theme number; theme 0 is the default — see Artwork themes.
Category artwork — <BASEDIR>/assets/themes/<N>/Categories/<image_key>.png|.jpg|.jpeg, one per row of categories.txt. Same rules, same theme fallback; only the folder differs.
Screensaver images — any *.png|.jpg|.jpeg in <BASEDIR>/assets/screensaver/ (file names do not matter; more images give more variety). These are not themed.

On first use each source image is converted and cached next to it as <name>.444 (RGB444, used by PicoDVI boards) and <name>.555 (RGB555, used by HSTX boards). Both are always written, so the same card works in every supported board. The .444/.555 files must not be authored by hand; when a source image is replaced under the same name, its stale .444/.555 files should be deleted so they regenerate. Nothing detects a cache that no longer matches its source: the board converts an image only when a cache is missing, so a card that already holds the old .444/.555 keeps showing the old artwork until they are removed.

Two host-side tools in tools/ support this, both needing only ffmpeg and numpy. Neither is part of any build; they are run by hand.

tools/png2raw.py writes the .444/.555 caches for an image or a folder of them, byte-identically to the board, so the SD-card bundle can ship them ready-made. --check compares against the committed caches instead of writing, which is the quickest way to confirm a source and its caches are still in step. Point it at a specific folder, never at a theme root — it converts every image it finds, including unused spares.
tools/make_category_art.py generates the six category tiles shipped for themes 0 and 1, each in that theme's own visual idiom. It is the source of record for that artwork; the tiles are regenerated from it rather than edited as images.

The released SD-card archive ships the cached .444/.555 files rather than the source images — they are far smaller, and shipping both would roughly double the download. Where a theme has no cache for an entry, its source image ships instead and the first boot converts it, so nothing in the menu is ever left without artwork.

	Menu artwork	Screensaver
Accepted formats	PNG, baseline JPEG	PNG, baseline JPEG
Maximum source size	1280 × 960	1280 × 960
Rendered as	scaled down (never up) to fit, letterboxed on black to 320 × 240	scaled down to fit 80 × 60
Recommendation	4:3 aspect (e.g. 320 × 240 or 640 × 480) to avoid black bars	small and legible — it moves around the screen

Progressive JPEG, interlaced PNG, 16-bit PNG, and oversized images are not supported; they are skipped and moved to an unsupported/ subfolder so they are not retried on every boot. Re-export as baseline/non-interlaced 8-bit and copy again.

Boards with PSRAM convert images lazily, as they first appear on screen. Boards without PSRAM convert everything in one batch during boot, for every theme on the card, not just the active one — the converter needs SRAM that is no longer free once the menu is running, so a theme cannot be converted at the moment you switch to it. The first boot after adding images takes noticeably longer, after which the cache makes it immediate.

Artwork themes

The graphical menu can carry up to ten sets of artwork. Each is a folder:

/emu/assets/themes/0/     theme 0 — the default, and the fallback
/emu/assets/themes/1/     theme 1
...                       up to theme 9

A theme folder holds one image per application, named after the image_key from the index file — so a theme might contain nes.png, md.png, doom.png. On a card with categories it also holds a Categories subfolder with one image per category. Only the folders that exist are used; the numbers need not be contiguous.

Switching — press UP or DOWN in the graphical menu. Only themes that are actually on the card are reachable, so with themes 0, 1 and 3 present, UP/DOWN cycles 0 → 1 → 3 → 0. The choice is saved to THEME= in /boot.txt immediately and restored on the next boot. UP/DOWN keep their usual meaning (choosing an application) in text mode, where artwork is not shown.

Incomplete themes are fine. An application the active theme has no image for falls back to theme 0's image, and to a black screen if theme 0 has none either. A theme can therefore restyle just a few entries.

Existing cards are migrated automatically. Releases before v0.2 kept menu artwork loose in <BASEDIR>/assets. On the first boot the bootloader creates assets/themes/0 and moves those image files into it — including the cached .444/.555 files, so nothing has to be re-converted. The screensaver/ folder and any other subfolder are left alone, as are files that are not images. The move is resumable: if it is interrupted, the next boot finishes it.

On-screen help

Press START in either menu mode, or choose Help from the options menu, for a full-screen summary of the controls, the meaning of the * and ! markers, and the current mode, theme, board configuration and index file (or, on a card with categories, categories.txt). Press START, the launch button, B or SELECT to return. It is also where a failed configuration write is reported.

Creating a bootable build of your own application

Any RP2350 application built for the application partition can appear in the menu — it need not be an emulator. Making one bootable requires compiling its .uf2 to the loader's layout and adding it to the SD card.

1. Compile the `.uf2` to bootloader format

A normal Pico SDK application links at 0x10000000. For the bootloader it must be relinked into the application partition at 0x10080000. Three changes to the build are required.

Give the application a name — the loader identifies applications by it:

pico_set_program_name(${projectname} "my_app")

Relink into the application partition. Add the following near the end of the CMakeLists.txt (after the target exists, before pico_add_extra_outputs), with BootPartition.cmake taken from the pico_shared repository:

if(BUILD_FOR_BOOTLOADER)
    include("pico_shared/BootPartition.cmake")
    frens_offset_for_bootloader(${projectname})
endif()

Build as a secure-Arm RP2350 image (the default SDK Arm build). The loader only flashes UF2 blocks with family RP2350 ARM_S (0xe48bff59):

mkdir build && cd build
cmake -DCMAKE_BUILD_TYPE=Release -DPICO_BOARD=pico2 \
      -DPICO_PLATFORM=rp2350-arm-s -DBUILD_FOR_BOOTLOADER=ON ..
make -j

Applications based on pico_shared can use its build script instead: ./bld.sh -2 -c <HW_CONFIG> -b (the -b switch passes -DBUILD_FOR_BOOTLOADER=ON).

The loader validates every image before erasing anything: UF2 magic, family ID, page alignment, and that every block lands inside the application partition. A standalone build still linked at 0x10000000 is rejected on-screen and can never overwrite the bootloader. The rejection screen names the problem — the address the image was actually linked at, the family it was built for, or that the file is corrupt — and repeats the build flags above; press any button to return to the menu.

2. Install it on the SD card

Copy the .uf2 to <BASEDIR>/<HW_CONFIG>/ and add a row to the index file (emulators.txt) with the program name set in step 1, an image_key, and a display name. See The index file. The row's position in the file is where the application appears in the menu.

On a card that uses categories, add the row to the config file of the category it belongs in instead — or to several, if it fits more than one.

3. Add images for the menu and screensaver

Menu image — place <image_key>.png (or .jpg/.jpeg) in <BASEDIR>/assets/themes/0/, using the image_key from the index row. It is shown full-screen in graphical mode. Add the same file name to any other themes/<N>/ folder to give the application a different look in that theme; themes you skip fall back to this one.
Screensaver images — place any *.png|.jpg|.jpeg in <BASEDIR>/assets/screensaver/.

Conversion is automatic; the format and size constraints are those listed under Artwork.

Auxiliary data images

For payloads too large to embed in the application (game data, filesystems), a second .uf2 with family RP2350 DATA (0xe48bff58) can target free flash above the application. Name it in the index row's fourth field, as a path relative to /roms, and the loader flashes it alongside the application, skipping the write when the CRC already matches. The loader looks for the file in /roms first, then for the same file name in the application's <BASEDIR>/<HW_CONFIG>/ folder. When it is in neither, the application is started only if flash still holds the data from an earlier start; otherwise the menu names the file and the folder it belongs in. Doom is distributed this way: the engine (doom_tiny.uf2, ARM_S) plus the WAD (/roms/doom/doom1-whx-bootloader.uf2, DATA), which updateAll installs.

Detecting the bootloader and returning to the menu

Optionally, an application can detect that it was started by the loader and offer a "return to menu" action. The protocol uses two watchdog scratch registers, which survive watchdog_reboot() but are cleared on power cycle:

scratch[6] == 0xB007ED01 — set by the loader immediately before starting the application ("you were launched from the bootloader").
scratch[7] = 0xB007BACE — set by the application, followed by a watchdog reboot ("show the menu instead of resuming").

With pico_shared these are Frens::isLaunchedFromBootloader() and Frens::rebootToBootloader() (pico_shared/FrensHelpers.h); its SELECT + START menu shows Return to emulator selection automatically. Without pico_shared, the raw equivalent is:

#include "hardware/watchdog.h"

bool launched_by_loader = (watchdog_hw->scratch[6] == 0xB007ED01u);

void return_to_menu(void) {
    watchdog_hw->scratch[7] = 0xB007BACEu;
    watchdog_reboot(0, 0, 0);
}

Building the bootloader from source

mkdir build && cd build
cmake -DCMAKE_BUILD_TYPE=Release -DPICO_BOARD=pico2 -DHW_CONFIG=8 \
      -DPICO_PLATFORM=rp2350-arm-s -DENABLE_PIO_USB=1 -DUSE_PICO_EXTRAS_I2S=0 ..
make -j
# -> build/pico-bootLoader.uf2  (flash via BOOTSEL)

The wrapper ./bld.sh -2 -c <HW_CONFIG> performs the same build; -w adds the CYW43 driver for the Pico 2 W LED, which is no longer released (see Pico 2 W). ./buildAll.sh builds every supported board into releases/ (requires picotool).

The serial log marks each start-up phase with the time since power-on (T+<ms> (+<ms>): <phase>). Output is held in an 8 KB RAM buffer and sent in the background, so logging does not hold up the start-up; it may therefore continue for a moment after the menu has appeared. A crash that stops the board without a panic message (a hard fault) loses whatever was still in the buffer. The log lists every .uf2, index row and category only in a build configured with -DBOOT_VERBOSE_LOG=ON (EXTRA_CMAKE_ARGS=-DBOOT_VERBOSE_LOG=ON ./bld.sh ...); by default those lines are left out so that they do not fill the buffer.

The image must fit the 512 KB bootloader region; the linker errors out if it does not, and every link prints its occupancy. The released binaries sit between 53% and 60% with USB drive mode built in. A -w build is the tight one: it reaches 97.8% on HW_CONFIG 1 even with USB drive mode left out, which is why the whole project is compiled -Os — -O2 no longer links there (see the comment in CMakeLists.txt).

To build the emulators and the native ports themselves, build_emulators.sh clones each source repository and produces the bootloader-format .uf2 files, placing them under emu/<HW_CONFIG>/.

By default each repository is built from its latest release tag, with the tag stamped into that repository's own pico_shared/menu.h SWVERSION so the emulator reports its version instead of a build date. -B asks interactively for a branch instead, and -m builds each repository's default branch; neither stamps a version.

pico_shared is taken from main, not from the revision the tag pins. Tag mode builds each emulator's tagged source against pico_shared main; every other submodule stays at the revision the tag pins, and emu/versions.txt records both refs. The reason is historical: bld.sh only learned -b (BUILD_FOR_BOOTLOADER) in pico_shared f2c8be9, and the emulator release tags of the time predated it — their pinned pico_shared rejected -b outright, so no bootloader-format .uf2 could be produced from it. That reason no longer applies, but the substitution still matters: in the v0.7.2 bundle 1943 pins 82ac5d8, which is main, while Galagino and OutRun pin 9d81d14, Phoenix and Moon Cresta ce03f96, Dragon's Lair 929281d and the other emulators the older 6e65df4, and are built against 82ac5d8 all the same. emu/versions.txt records main, the revision every emulator was actually built against.

The native ports and ColecoVision are the exception to all of the above. pico-doom, pico-duke3D, pico-quake2 and Adafruit_ColecoJam have no pico_shared, so there is no SWVERSION to stamp, and all four build through their own per-board <board>-build-forbootloader.sh scripts rather than bld.sh. Each targets only the boards it has a script for — Doom 2, 8, 13, 14 and 15, Duke Nukem 3D 2, 8, 13 and 15, Quake II 2 and 8, ColecoVision 8 — and is reported as SKIP for every other configuration. The ColecoVision build downloads its own dependencies, so it needs network access. The Quake II build produces quake2.uf2, which is installed as pico-quake2.uf2 (the SCRIPTED_UF2_OF table), and needs PICO_PIO_USB_PATH on both of its boards; without it, it is skipped on HW_CONFIG 2 as well.

All four repositories are tagged and are built from their latest tag like the emulators, so versions.txt records a real version for doom_tiny, doom_tiny_full, duke3d_game, pico-quake2 and colecojam. The tag is simply the newest by version order, whether or not it carries a v prefix (Adafruit_ColecoJam's tags do not), so later tags are picked up with no change here. This applies to the emulators as well: a tag whose GitHub release is marked as a pre-release, such as Adafruit_ColecoJam's beta 2.0b1, is skipped in favour of the newest full release. build_emulators.sh asks the GitHub API through gh for this, and warns when it cannot, in which case every tag is a candidate. The SCRIPTED_BRANCH table in build_emulators.sh — main for Doom, Quake II and ColecoVision, fix/audio-production-rate for Duke Nukem 3D — is now only the fallback for a repository that has no tag at all.

Repositories are cloned from the PicoPlus-devel organisation by default. An entry in the REPO_OF table of build_emulators.sh may name a repository elsewhere as owner/repo, as the ColecoVision entry (cogliano/Adafruit_ColecoJam) does; versions.txt then records it in that same form.

Doom additionally needs PICO_EXTRAS_PATH pointing at a pico-extras checkout, since it resolves its whole toolchain from the environment. Without it the two Doom variants are skipped with that reason and everything else — Duke Nukem 3D and Quake II included — still builds.

./build_emulators.sh -c 8            # one board, latest tags
./build_emulators.sh -c all -j 3     # every board
./build_emulators.sh -c all -j 3 -z  # ... and pack the SD-card archive
./build_emulators.sh -c 8 -B         # pick a branch interactively

-z writes emu/versions.txt — the manifest of what each emulator was built from, one <program_name>;<repo>;<ref>;<pico_shared> row per shipped emulator — and packs releases/pico-bootLoader_sdcard.zip via .github/scripts/pack_sdcard.sh. The packer takes the emu/ tree as its only source of truth and refuses to build an archive containing an empty .uf2, so a half-finished build cannot ship. It requires -c all, since an archive built from one board would be missing the others. Besides emu/, the archive holds updateAll/, with updateAll.exe built by -z (mingw-w64), and ld2pico/, with the ld2pico.exe that -z downloads with curl from the pico-dragonslair release it bundled. Doom's WAD data image is not packed, although build_emulators.sh still installs it in emu/<HW_CONFIG>/ for a card copied straight from the tree; on a card made from the archive, updateAll installs it in /roms/doom/.

Cutting a release

The loader .uf2s are built by CI; the SD-card archive is built locally, because it needs the toolchain of every application. An emulator-only refresh still gets its own release so users find out about it — that is what the v0.N.M form is for.

The full maintainer checklist — per-scenario steps, dry runs, verification and rollback — is in RELEASING.md. The short version:

./build_emulators.sh -c all -j 3 -z            # emulators + archive (local)
git add emu/versions.txt && git commit -m "Refresh emulator bundle" && git push
gh workflow run BuildAndRelease.yml -f tag=v0.2.1   # builds loader, creates tag, publishes
gh release upload v0.2.1 releases/pico-bootLoader_sdcard.zip

Credits

Menu and screensaver artwork is taken from Ducalex — retro-go (github.com/ducalex/retro-go).
Additional theme and category artwork, metadata and testing done by Gavin Knight
The emulator cores and the native ports are the work of their upstream authors; see the repository links under Bootable applications.
The ColecoVision emulator, ColecoJam, is the work of Dan Cogliano (@cogliano). Many thanks to him for writing it and for making it available to this project.
The games of Galagino are emulated by Galagino, by Till Harbaum, and its fork GalaginoPlus, by VirtualClaudioBoy, of which pico-galagino is a port.
1943 follows MAME's 1943 driver, and the research of Liu Szuping for an earlier RP2350 port of the game served as a reference; see the pico-1943 README.
updateAll downloads missing ROM zips from ArcadeROMsDB_MiSTer, a database maintained by zakk4223 for the MiSTer FPGA project, and reads databases in the format of the MiSTer Downloader. Neither is part of this project.
The PicoNES PCB was designed by John Edgar Park.
The PicoNES Mini, PicoNES Micro and PicoSNES PCBs, and the 3D-printed cases for the three PicoNES designs and for the Waveshare RP2350-PiZero, were designed by Gavin Knight.
Support for the Olimex RP2040-PICO-PC was contributed by DnCraptor.
This project was developed with the assistance of AI (Anthropic Claude / Claude Code).

License

This project is licensed under the GNU General Public License, version 3. See the LICENSE file for the full text.

	Category list	Application list
LEFT / RIGHT (graphical), UP / DOWN (text)	choose a category	choose an application
first button (`A` on a NES pad)	open the category	start the application
second button (`B` on a NES pad)	—	back to the category list

Name		Name	Last commit message	Last commit date
.github		.github
docs/images		docs/images
emu		emu
ld2pico		ld2pico
pico_lib @ 47f3aa7		pico_lib @ 47f3aa7
pico_shared @ 6ad619e		pico_shared @ 6ad619e
src		src
tools		tools
tusb_xinput @ 8b4920c		tusb_xinput @ 8b4920c
updateAll		updateAll
.gitignore		.gitignore
.gitmodules		.gitmodules
CHANGELOG.md		CHANGELOG.md
CMakeLists.txt		CMakeLists.txt
LICENSE		LICENSE
README.md		README.md
RELEASING.md		RELEASING.md
bld.sh		bld.sh
boot.txt		boot.txt
buildAll.sh		buildAll.sh
build_emulators.sh		build_emulators.sh
main.cpp		main.cpp
pico_sdk_import.cmake		pico_sdk_import.cmake

Latest commit

History

Folders and files

Repository files navigation

pico-bootLoader

Getting started

Supported hardware

Olimex RP2040-PICO-PC (HW_CONFIG 15)

Pico 2 W

Video

Bootable applications

How it works

Input devices

The options menu

USB drive mode

Custom PCBs

PicoNES PCB (HW_CONFIG 2)

Which loader binary to flash

What the Pimoroni Pico Plus 2 adds

3D printed case

PicoNES Mini PCB (HW_CONFIG 6)

PicoNES Micro PCB (HW_CONFIG 9)

PicoSNES PCB (HW_CONFIG 13)

SD card layout

Configuration (boot.txt)

The index file (allow-list)

Categories

Artwork

Artwork themes

On-screen help

Creating a bootable build of your own application

1. Compile the .uf2 to bootloader format

2. Install it on the SD card

3. Add images for the menu and screensaver

Auxiliary data images

Detecting the bootloader and returning to the menu

Building the bootloader from source

Cutting a release

Credits

License

About

Topics

Resources

Stars

Watchers

Forks

Releases

Packages

Contributors

Languages

Configuration (`boot.txt`)

1. Compile the `.uf2` to bootloader format
